Polyimide Tubing - Quality - Dimensional Control

Laser control of medical tubing

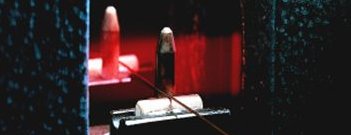

Laser for Dimension Check

Laser measurement of mandrel wire in the wire drawing operation and prior to coating ensures consistent OD & I.D. Dimensions with tight tolerances.

Statistical process control of Polyimide Tubing
In-Line Statistical Process Control (click picture for enlargement)
Medical tubing inner diameter control

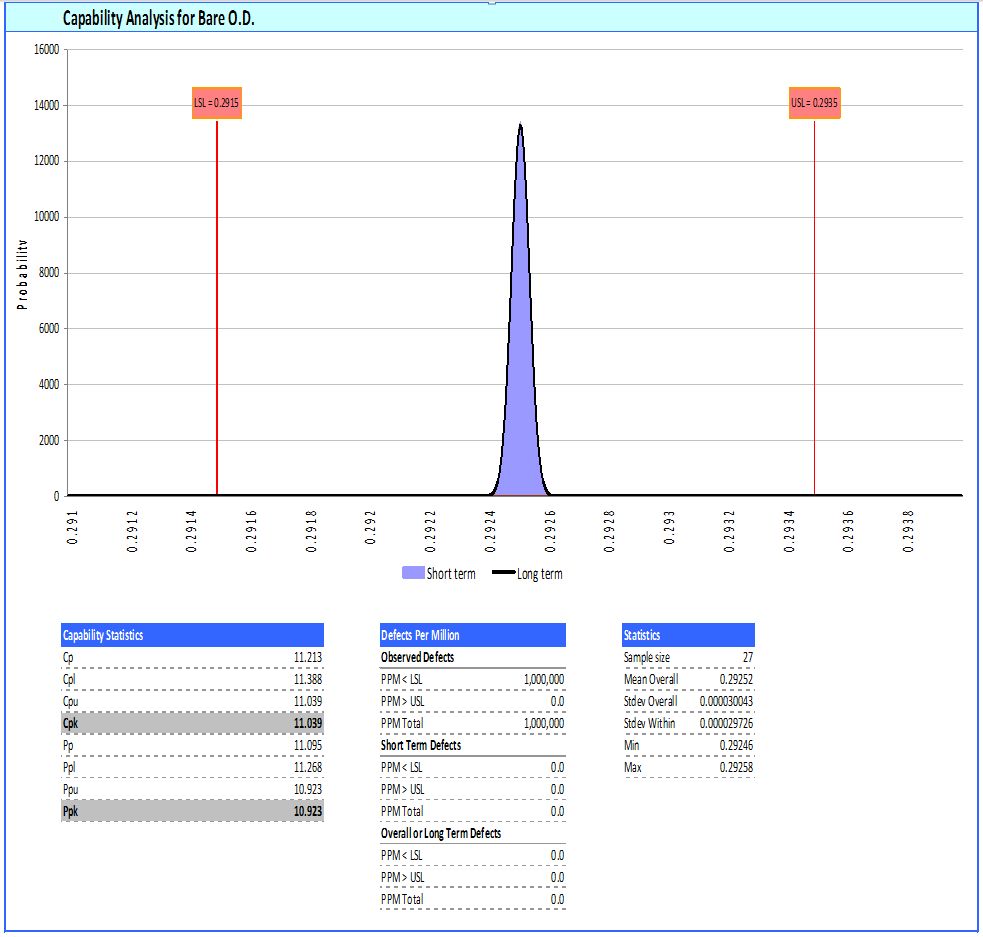

Bare Wire Mandrel O.D. (Tubing I.D.)
(Tubing Inner Diameter Consistency)
(click picture for enlargement)
Medical tubing overall diameter control

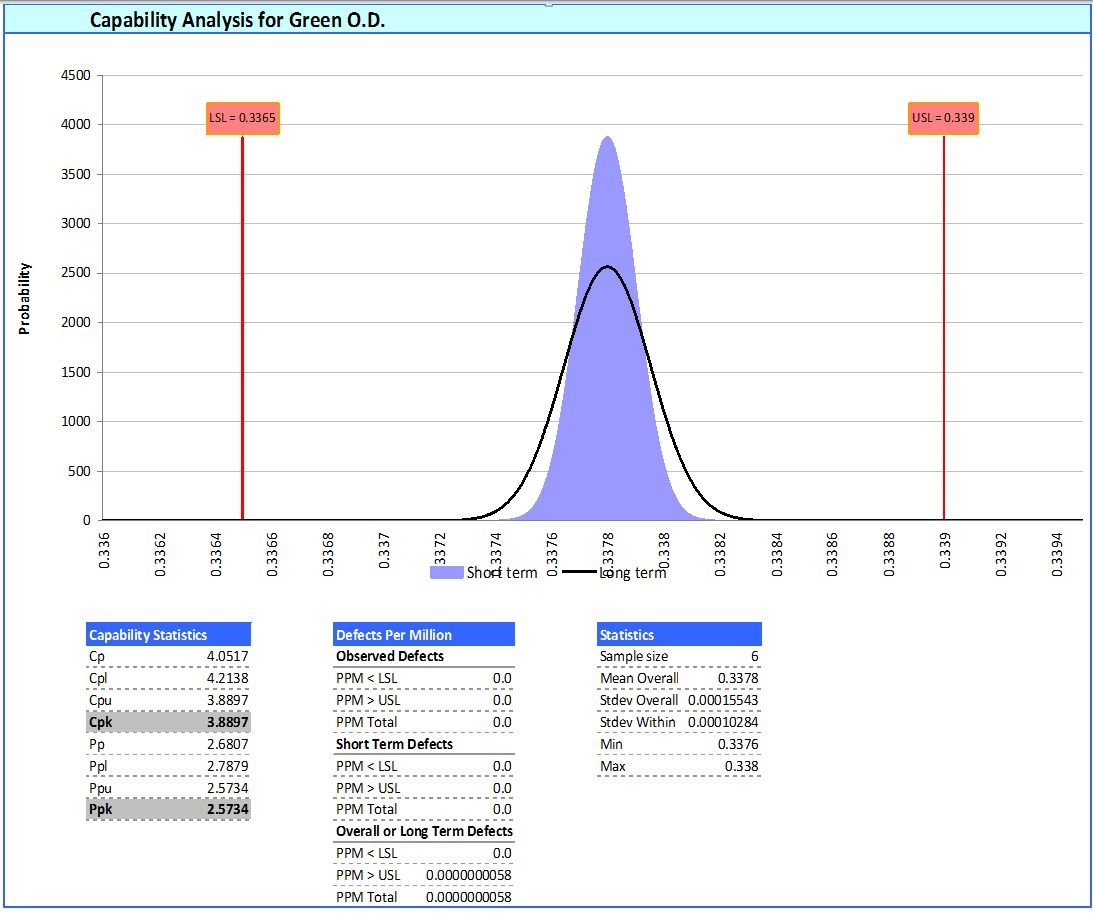

Tubing O.D.
(Tubing Overall Diameter Consistency)
(click Picture for enlargement)
